MGT-DSA-INK200 is a RoHS-compliant solderable conductive silver paste, suitable for printing antennas in a variety of communication devices and consumer products such as mobile phones. It can be processed using multiple methods, including screen printing, transfer printing, and spraying. This product uses a high-strength resin as the binder phase and special nano-silver powder as the conductive phase, providing excellent process adaptability and environmental durability. Its low resistivity and good solderability make it compatible with low-temperature solder pastes below 180°C.

Product Features

(1) Excellent electrical conductivity.

(2) Excellent compatibility with substrates such as PET, PC, glass, ceramics, and metals.

(3) Good process adaptability and environmental durability.

(4) Good solderability.

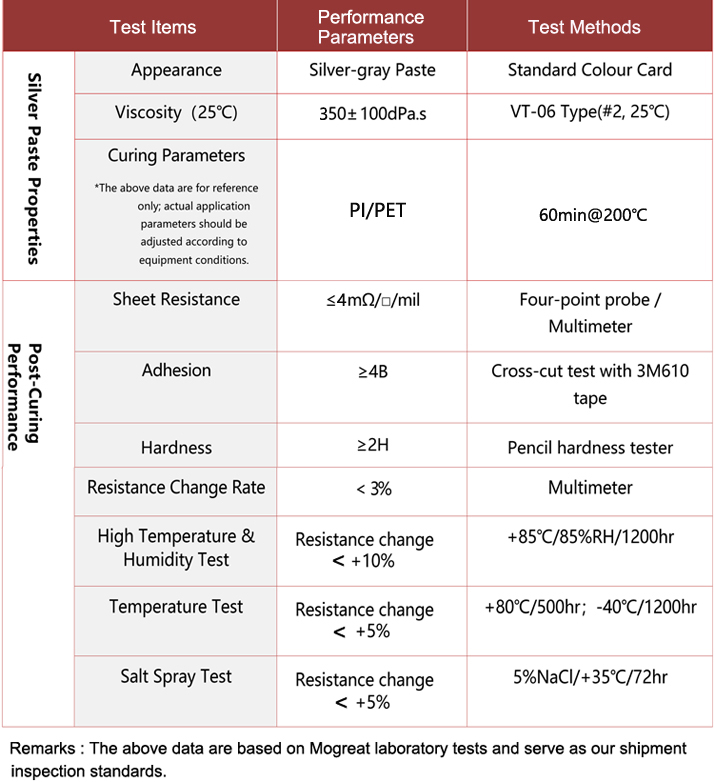

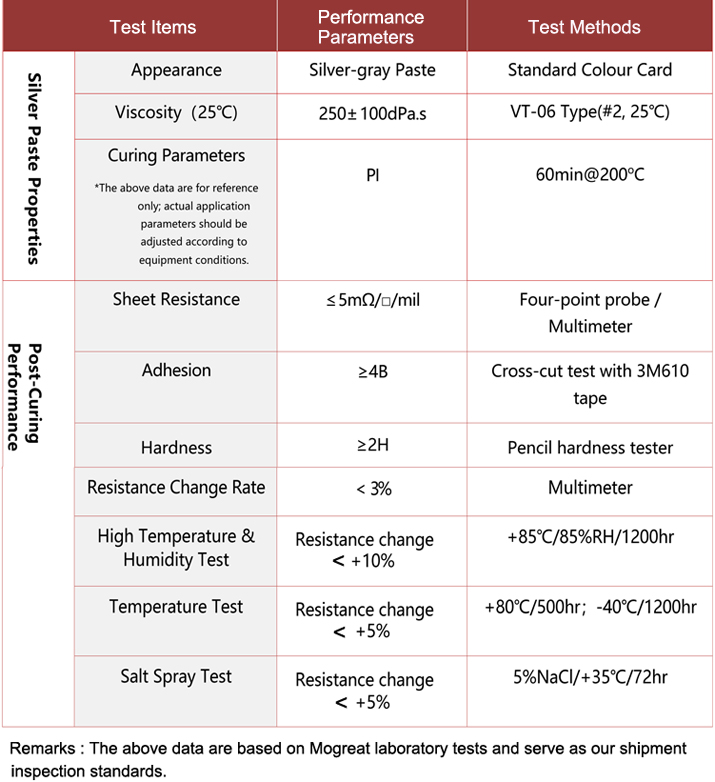

Product Specifications

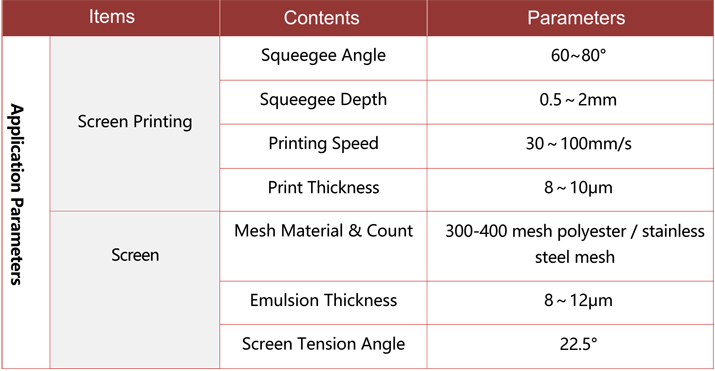

Process Parameters

Storage & Usage

(1) This product is vacuum-packed. For long-term storage, keep it sealed, light-protected, and stored at 0~10°C. After opening, it is recommended to use it within one week.

(2) The product has a shelf life of 6 months from the date of manufacture in its original unopened container. Before use, allow it to equilibrate to room temperature (23±2°C) for 2 hours. Stir thoroughly (recommended: mechanical stirring for 5~10 minutes at 30~50 rpm). Avoid vigorous stirring to prevent air bubble entrapment.

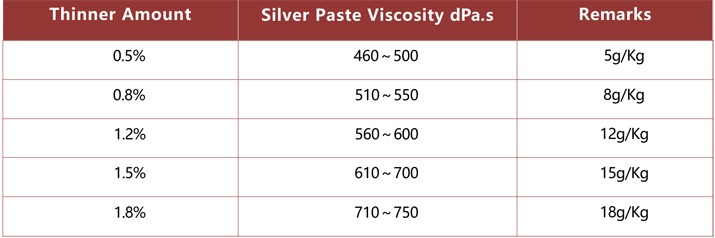

(3)The viscosity of this product has been optimized; adding thinner is not recommended. If dilution is necessary, please use our designated thinner DT-INK200, and ensure the added amount does not exceed 2% of the total weight.

(4) The following table shows laboratory test values for reference only.

Disclaimer

URL: www.mogreat.com
