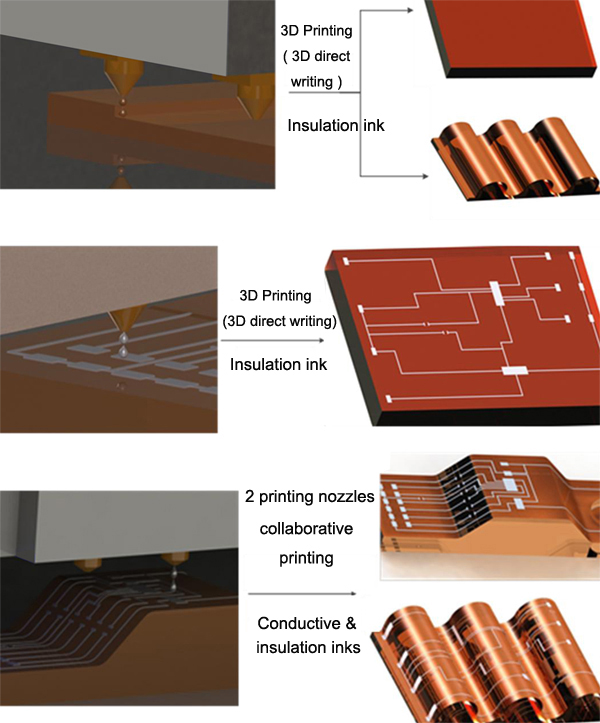

MGT-3D-P3050 is a nanosilver conductive ink specially developed for extrusion 3D printing or direct 3D writing. This conductive ink is based on the characteristics of nanosilver with small fineness, excellent rheological properties, light-curable, and strong adhesion to various insulating materials. It is suitable for various extrusion methods and direct writing methods including peristaltic pump extrusion heads, screw pump extrusion heads, piston syringe extrusion, and pneumatic pump extrusion heads. When combined with 3D-printed insulating materials, it can be used to manufacture circuit boards with various special structures such as multi-layer structures, irregular shapes, curved surfaces, and three-dimensional structures, etc.

 Curing Methods

●  Heat curing

●  Short-wave infrared

●  808nm infrared laser curing    (Recommended)

●  1064nm infrared laser curing  (Recommended)

Extrusion Methods

●  Piston syringe extrusion

●  Screw Extrusion

●  Peristaltic pump extrusion

●  Pneumatic pump extrusion head

●  Gear pump extrusion

●  Piezoelectric valve (PICO Pulse, Marco Vermes)

Product Parameters

Disclaimer : The information provided in this Technical Data Sheet (TDS) is compiled in good faith and obtained using procedures performed at Mogreat and to the best of our knowledge. The information on this TDS has been updated on the date printed, and latest versions can be obtained upon request. The customer is responsible for conducting tests to determine whether our products are compatible with the customer's process and specific applications.
