Latest NewsProductintroduction:

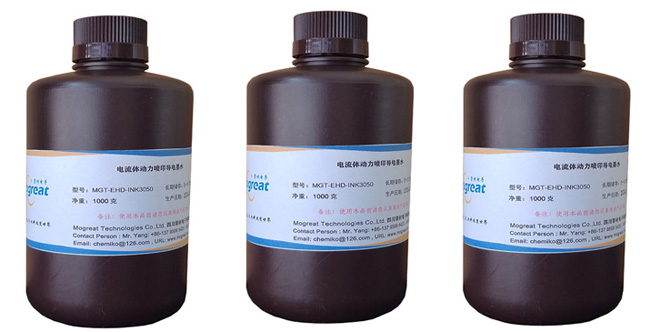

Electrodynamic fluid inkjet printingconductive ink (MGT-EHD-INK3050) is a custom-developed nanosilver conductive ink (EHD Jetting , i.e. near-field electrospinning ). Suitable for printing andpreparation of extremely thin electrode and narrow wire-width circuit. Curingconditions: ≥120℃, 30 minutes, or IR curing.
Product advantages:
1. Good conductivity.
2. Smooth printing.
3. Good hardness and adhesion.
Main technical parameters：
Test Items | Performance Parameters |
Product system | Eco-friendly solvent |
Silver particle size | 30~50nm |
Viscosity (cp) | 12~200cps, adjustable （rotational viscometer，200rpm@25℃） |
Solid content | 40~80wt% |
Electrical resistivity | ≤50mΩ/□/mil |
Adhesion | 5B（3M810 adhesive tape） |
Hardness | 2H |
Storage Conditions:
Long-term storage should be 0~10℃ tight sealed and away from light. After refrigerating, it is naturally restored to normal temperature, it is recommended to mechanically stir for 10 minutes, and the printing environment is 20~25℃.
Disclaimer: The information provided in this Technical Data Sheet (TDS) is compiled in good faith and obtained using procedures performed at Mogreat to the best of our knowledge. The information on this TDS has been updated on the date printed, and latest versions can be obtained upon request. The customer is responsible for conducting tests to determine whether our products are compatible with the customer’s process and specific applications.
URL: www.mogreat.com
